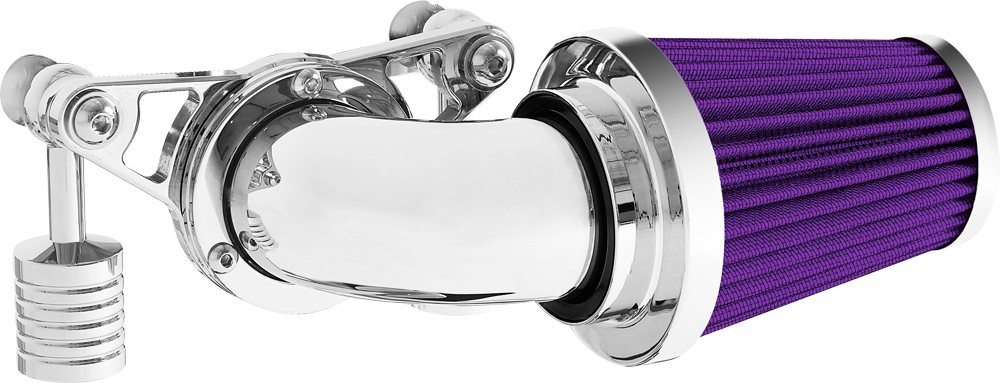

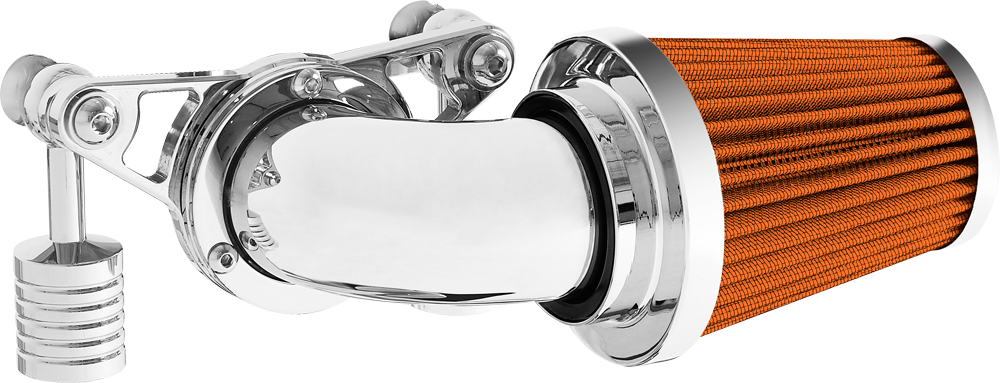

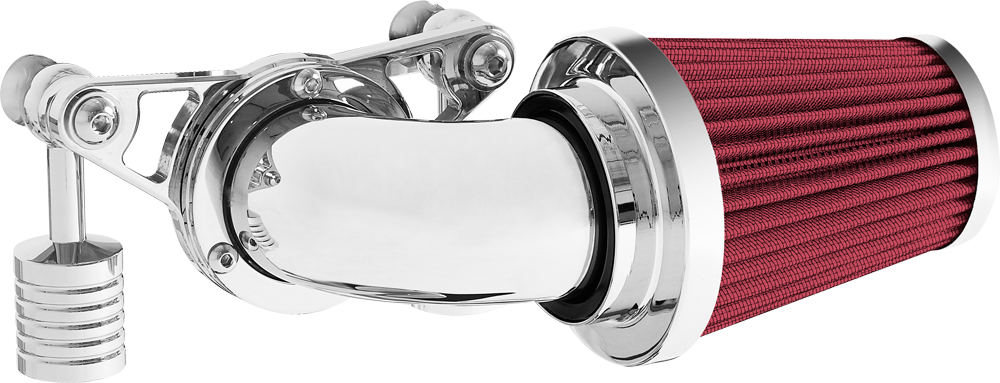

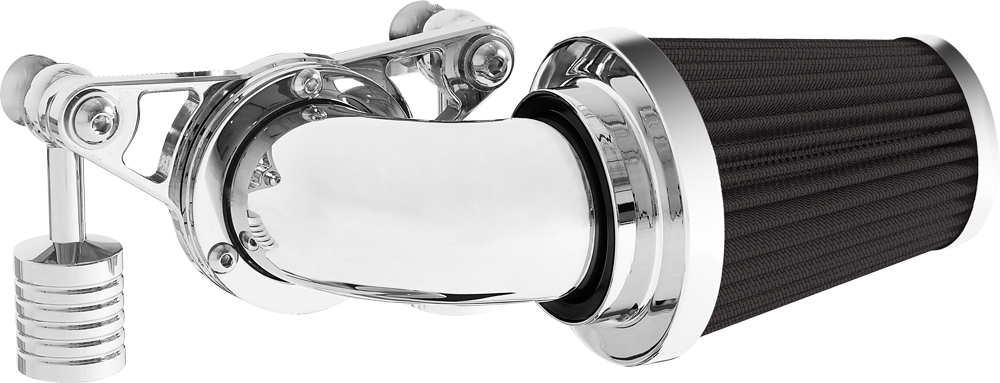

90 Super Filter
A popular choice for many riders. The swept forward design offers performance and style that lends this air cleaner to the top of our list. Attention to detail is abundant from the design to the manufacturing process. The deep pleated air filter is sized proportionately allowing for greater air flow while maintaining rider comfort. A mandrel bent elbow and billet aluminum mounting kit are the remaining components that complete this air cleaner assembly.
Whats Included
Head Breathing Options
With all four stroke motorcycle engines, crankcase ventilation is required. We offer two methods of venting the heads. Customers can choose from our patented external top breathers or our one-piece internal support bracket. The internal bracket contains a breather passage back into the air cleaner / air filter. The internal venting will require little to no servicing and, for some customers, may provide a cleaner look. If you choose the external breathers, there is a small cleanable cotton filter inside the top breather housing that will require servicing when full. The choice is yours and if you need further information in making your decision please feel free to contact us.
To learn more send us a message, or call us at (866) HOT CYCLE.
Filters
Wimmer Custom Cycle exclusively manufactures our own line of cleanable / reusable air filters. We design our air filters to provide superior filtration, thus allowing proper protection of your engine, while maximizing the airflow of the air cleaner / air intake you have purchased. Each air filter is designed to our own unique requirements and specifications based on the air cleaner / air intake it was designed for.
The air filters are manufactured from multiple thin layers of surgical grade cotton mixed with polyester. The cotton polyester mix is then sandwiched between two layers of epoxy coated wire mesh. Pleats are then formed, allowing for increased surface area which in turn leads to increased efficiency. The pleated assembly is then shaped and molded with urethane to its final product.
Since Wimmer Custom Cycle’s air filters are manufactured from a cotton / polyester blend, they can be cleaned and re used. The cleaning process is fairly simple and requires no special products. The frequency of cleaning will depend on environmental factors and usage; a good rule of thumb would be once a year or every 15,000 miles. (More frequent cleaning may be necessary depending on environment)
Please follow the steps below for cleaning:
Rain Socks
Wimmer Custom Cycle rain socks are designed to provide water repellent protection and enhance the efficiency of all exposed air intake assemblies (air filters and/or velocity stacks), while adding little restriction to the airflow of the intake. All rains socks are constructed with a proprietary polyester mesh and then treated with a hydrophobic water repellent process. The rain socks are designed specifically for each individual air filter and/or velocity stack to insure superior fitment and performance. Most rain socks are available in six standard colors.
The average life cycle of the water repellent treatment is 1-2 years, depending on conditions and usage. The rain socks are NOT water proof.
